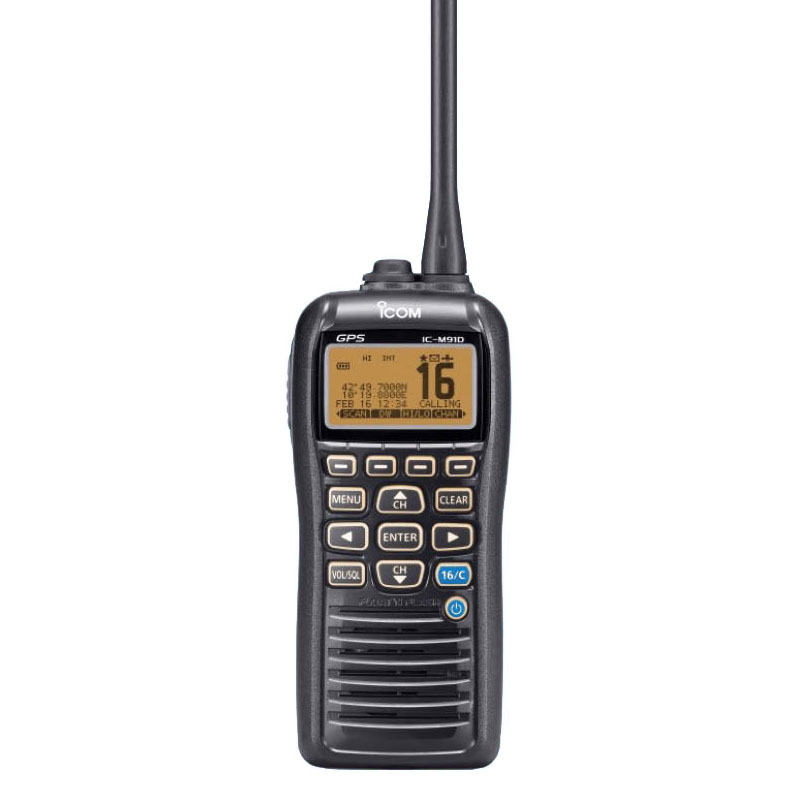

Icom - IC-M91D buoyant VHF / DSC handheld radio

Icom - IC-M91D buoyant VHF / DSC handheld radio

Icom
  (1 Review)

Manufacturer #:  IC-M91D

£209.95    (Inc. UK VAT @ 20%)RRP:  £269.99Save:  £60.04 (22%)(£174.96 Exc. VAT)

The IC-M91D has now been replaced by the IC-M93D.

Click here to view.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
icom -ic - m91d
10 June 2016  |

great radio and so easy to use even for a novice

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

Product Information

  • Active noise cancelling technology – Reduces background noise by up to 90%
    The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better and be heard better.

  • New Icom marine family user interface provides simple operation
    The new menu system provides easy and intuitive operation. The bottom line of the full dot-matrix display shows the software key functions which can be toggled with the left and right buttons. The directional keypad allows you to perform various operations and settings.

  • Built in DSC and GPS – Compliant to the latest ITU ad ETSI standards
    The IC-M91D is Icom’s first marine handheld VHF with integrated DSC/GPS giving you the facility to send and receive DSC calls from your handheld. The integrated GPS provides another important benefit. The waypoint/compass function allows the boat owner to steer their way to waypoints within a route. A Man Over Board (MOB) function allows you to record time and position of the MOB just in case the worst ever happened. These features, dependant on the size of your vessel, could provide a central or back up navigation tool.

  • 700mW loud internal speaker
    The IC-M91D uses a BTL (bridge-tied load) amplifier that doubles the audio output. The large speaker delivers 700mW of loud and intelligible audio even in noisy environments.

  • Float 'n' Flash
    Like its predecessors, the IC-M91D features Float 'n' Flash. What this means is if the radio falls into the water, it will float on its back with the LCD, backlit keypad and distress button flashing, thus making the radio easier to retrieve. IC-M91D Floating IC-M91D Distress The radio has IPX7 submersible protection. (1m depth for 30 minutes)

  • Li-ion battery pack and desktop charger supplied
    The large capacity 1500mAh Li-Ion battery pack provides 8 hours of operating time. A desktop charger is supplied to charge the battery pack. * Typical operation with 5:5:90 duty ratio.


  • Optional submersible HM-167 speaker-microphone
  • 50 waypoint memories
  • AquaQuake draining function
  • Dual/Tri-Watch function for monitoring Ch. 16 and/or call channel
  • Battery indicator shows remaining battery power in 4 levels
  • Favourite channel function

The Icom IC-M91D is supplied complete with:

  • BC-01 AC adaptor
  • BC-204 battery charger BP-275 battery pack
  • MB-109 belt clip
  • FA-SC59V antenna
  • Hand strap


General
Frequency range Tx - 156.000-161.450MHz
RX- 156.00-163.425MHz
Usable Channel groups INT Channel's
Type of emission 16k0G3E (FM)
16K0G3B(DSC)
Current drain (at 7.4v DC) Tx- 5W output:1.5A
RX AF max. - 5mA typ
Antenna impendence 50 ohms
Dimensions 61.2 x 141.4 x 43.2mm (WxHxD; projections are not included)
Weight (approx.) 318g
(with BP-275, FA-SC59V, MB-109)
Transmitter
Output Power 5W/1W approx
Maximum frequency deviation   ±5KHz
Frequency error ±1.5KHz
Spurious emissions 0.25µW
Receiver
Sensitivity (at 20db SINAD) -4dBµ emf. typ.
Squelch sensitivity -6Bµ emf typical (threshold)
Adjacent Channel selectivity 70dB
Spurious response 70dB
Intermodulation rejection 68dB
Hum and Noise ratio 40dB
Audio output power
(at 10% distorition, 8Ω load)
700mW typ. (Internal SP@1KHz)
200mW  typ. (External SP)
 GPS (GPS Module Specifications)
Receiver Channels 48 Channels
Sensitivity Less than -146dBM
Time to first fix 36 Seconds typ. (cold start)
1 second typ. (hot start)
Applicable U.S. military specifications and IP rating - Standard
  MIL-810G
  Method Procedure
Low Pressure 500.5 I, II
High temperature 501.5 I, II
Low temperature 502.5 I-C
Temperature shock  503.5 I
Solar Radiation 505.5 II
Rain blowing/drip 506.7 -
Humidity 507.5 II
Salt fog 509.5 -
Dust blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
