Index Marine - Cable Glands (DG 316 Stainless Steel)

Cable gland:

Manufacturer #: A1-DG8S

£34.99 (Inc. UK VAT @ 20%)(£29.16 Exc. VAT)

Details
Delivery
Customer reviews (0)

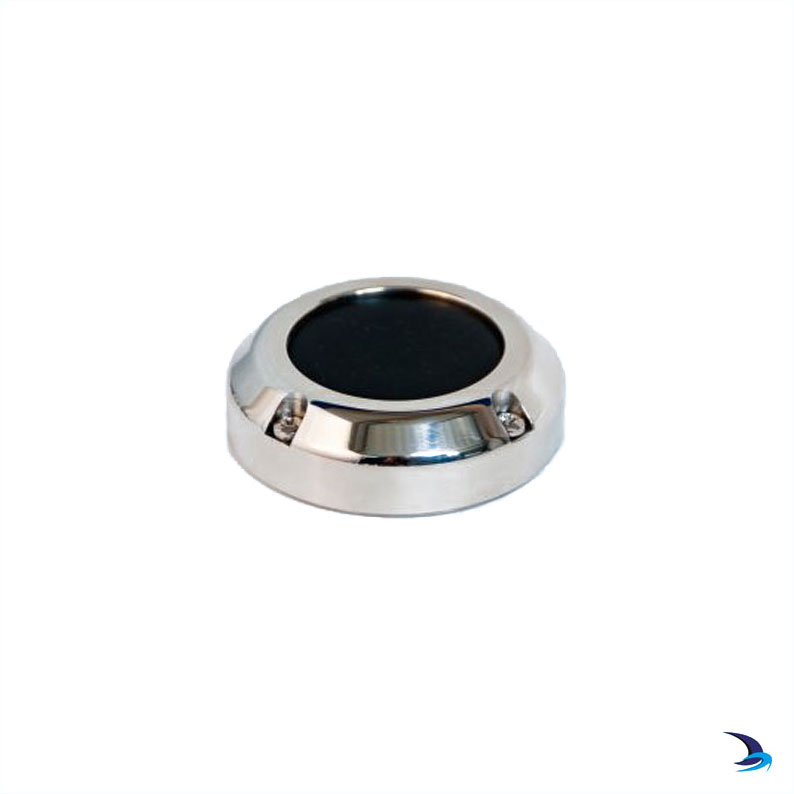

The DG series stainless steel glands are made from marine grade 316 stainless steel. They are available in an aperture range of 8 - 50mm and have an attractive, low profile shape. The range has passed independent rigorous dust and waterproof testing and rated IP 68.

Each unit is supplied with clear fitting instructions and A4 stainless steel fixings. DG deck glands are easy to fit and do not require the removal of fitted connectors when installing.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Model	Max Cable Size	Max Connector Size	Features	Dimensions
DG 8A	6mm	8mm	Preformed bungs included for pass-through cable sizes 2-6mm.	12 x 35mmØ
DG 20A	14mm	21mm	User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes.	19 x 49mmØ
DG 21A	8mm	21mm	3 preformed bungs included for pass-through cable sizes 4-8mm. (No drilling required)	19 x 49mmØ
DG 22A	14mm	21mm	3 preformed bungs included for pass-through cable sizes 9-14mm. (No drilling required)	19 x 49mmØ
DG 30A	25mm	31mm	User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes.	19 x 60mmØ
DG 40A	36mm	41mm	User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes.	19 x 70mmØ
DG 45A	15mm	41mm	1 preformed bung included for pass-through cable sizes 12-5mm. (No drilling required)	19 x 70mmØ
