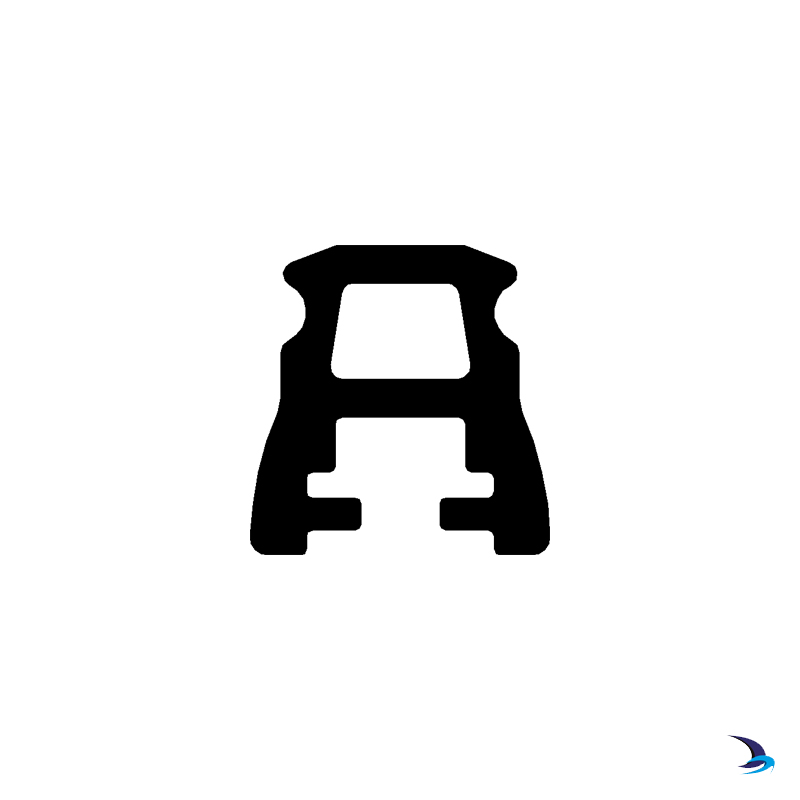

Lewmar - Beam Track Size 0 - 3m

Manufacturer #: 29160330BK

£156.99 (Inc. UK VAT @ 20%)RRP: ~~£157.54~~Save: £0.55 (0%)(£130.83 Exc. VAT)

Details
Delivery
Customer reviews (0)

Beam track is used when spanning cockpits and across companion way hatches. Three fixing bolts should always be used either side of the span and washers fitted under the head of the bolt and between track and deck. Some beam track can only use metric fasteners.

Made of aluminium 6082T6 extrusion.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Description	Size	Actual Length		Height		Width		Weight (per metre)		Max Span		Fixings (Hex Head)
		m	ft	mm	in	mm	in	g	oz	mm	in	Metic	Imperial
Beam Track	0	1.5	4'11"	24.7	0.97	24	0.44	954	33.65	400	16	M6	1/4"
Beam Track	2	1.5	4'11"	35	1.38	35	1.38	1560	54.91	800	31 ½	M10	-
Beam Track	2	2.0	6'7"	35	1.38	35	1.38	1560	54.91	800	31 ½	M10	-
Beam Track	3	1.5	4'11"	55	2.16	50	1.97	3640	128.13	900	35 7/16	M12	-
Beam Track	3	2.0	6'7"	55	2.16	50	1.97	3640	128.13	900	35 7/16	M12
Beam Track	3	3.0	9'10"	55	2.16	50	1.97	3640	128.13	900	35 7/16	M12
HD Beam Track	1	1.0	3'3"	42	1.75	32	1.25	1770	62.4	900	35 7/16	M8	5/16"
HD Beam Track	1	1.5	4'11"	42	1.75	32	1.25	1770	62.4	900	35 7/16	M8	5/16"
HD Beam Track	1	2.0	6'7"	42	1.75	32	1.25	1770	62.4	900	35 7/16	M8	5/16"
HD Beam Track	2	1.5	4'11"	51	2.0	51	2.0	3000	105.82	900	35 7/16	M10	3/8"
HD Beam Track	2	2.0	6'7"	51	2.0	51	2.0	3000	105.82	900	35 7/16	M10	3/8"
