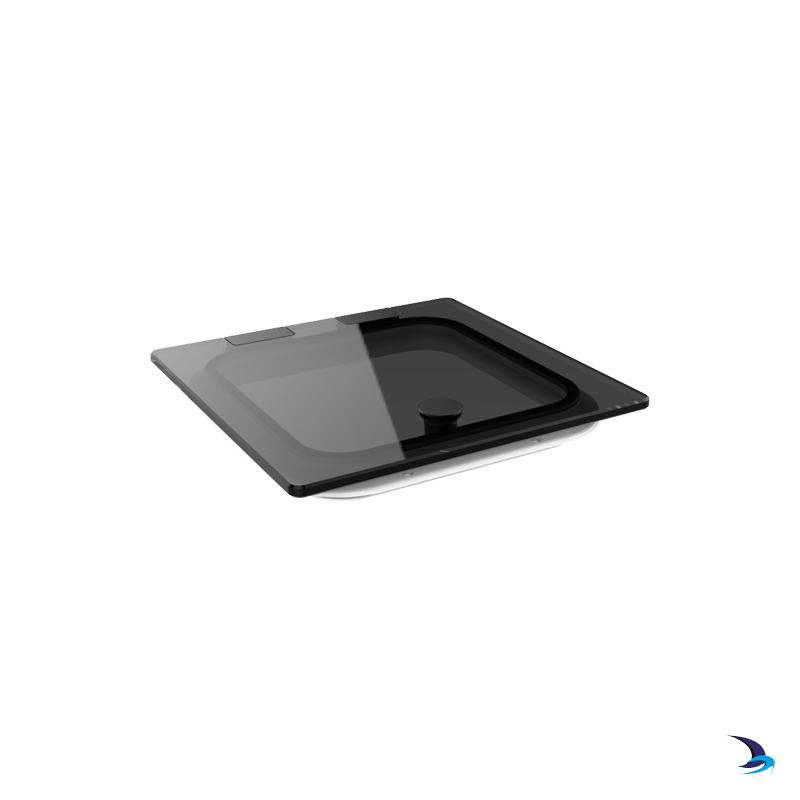

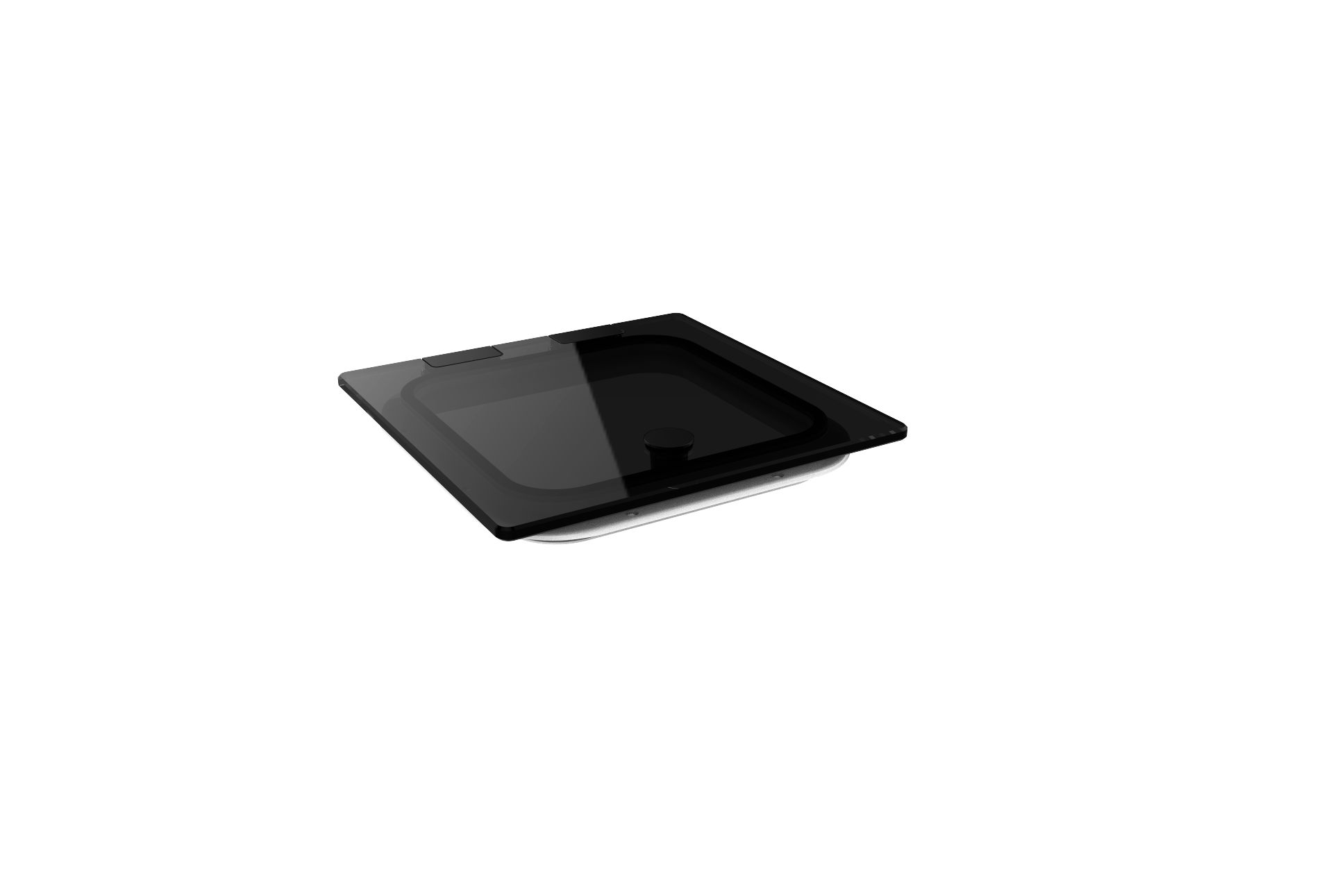

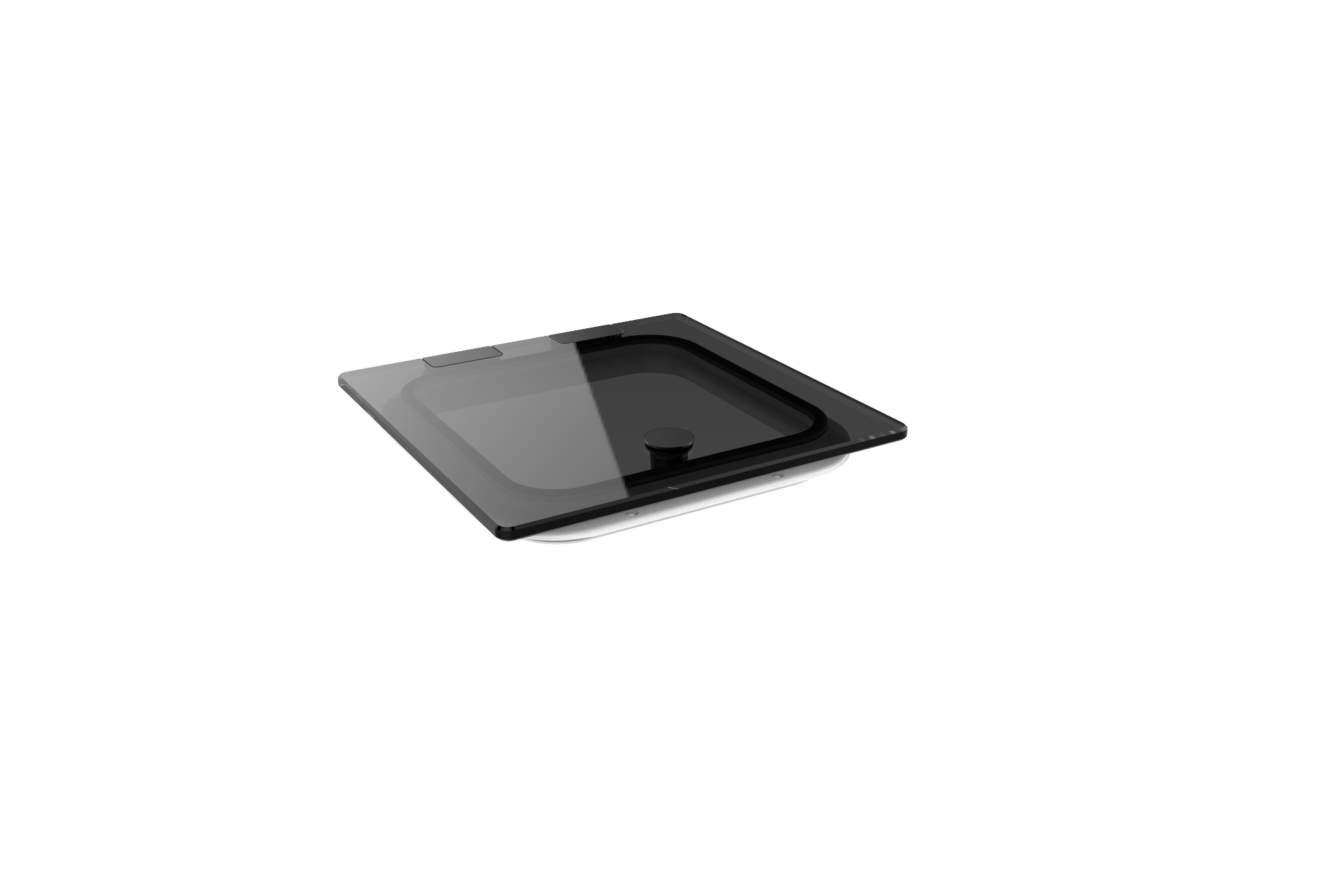

Lewmar - Flush Hatch 3G Size 10 330 x 330mm

Lewmar - Flush Hatch 3G Size 10 330 x 330mm

Acrylic colour:

Manufacturer #: 399104924

£379.99 (Inc. UK VAT @ 20%)RRP: ~~£479.83~~Save: £99.84 (21%)(£316.66 Exc. VAT)

Details
Delivery
Customer reviews (0)

Lewmar pioneered the high-volume Flush hatch platform back in 2006, bringing what was then Superyacht styling into mainstream boat production. The precision of the fit makes for a sleek, modern look and means no more stubbed toes for boat owners!

2013 saw the launch of the new version of this successful product offering an even smaller profile and cleaner aesthetic plus improved manufacturing techniques. The tough, tinted acrylic panel is all that can be seen on deck.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Flush Hatch 3G Features

Lower frame mounted seal
Strengthened, extruded aluminium frame hidden discreetly below deck
Completely flush fittings
Exterior handle available for foredeck use
Interchangeable with the Flush 2G product
Built in locking mechanism

Flush Hatch 3G Standard Specifications

White lower frame
Black mouldings
Acrylic colours grey or dark grey
Size 10, 20 and 41 supplied with friction hinges and plain flush exterior handle caps
Sizes 30, 44, 54, 60 and 70 supplied with 1 or 2 stays and winch handle opening handles

Lewmar Flush Hatch 3G Specifications

Size	Overall Size					Cut-Out Size
Size	Width (X)	Height (Y)	Depth (Z)	Radius (R)	Hinge gap (W)	Width (X 1)	Height (Y 1)	Radius (R 1)
10	330m	330mm	31mm	10mm	11mm	260mm	260mm	42.5mm
20	417mm	272mm	31mm	10mm	11mm	347mm	202mm	42.5mm
30	527mm	397mm	31mm	10mm	11mm	457mm	327mm	42.5mm
41	491mm	246mm	31mm	10mm	11mm	421mm	176mm	42.5mm
44	512mm	512mm	31mm	10mm	11mm	442mm	442mm	42.5mm
54	577mm	462mm	31mm	10mm	11mm	507mm	392mm	42.5mm
60	577mm	577mm	31mm	10mm	11mm	507mm	507mm	42.5mm
70	697mm	697mm	31mm	10mm	11mm	627mm	627mm	42.5mm
