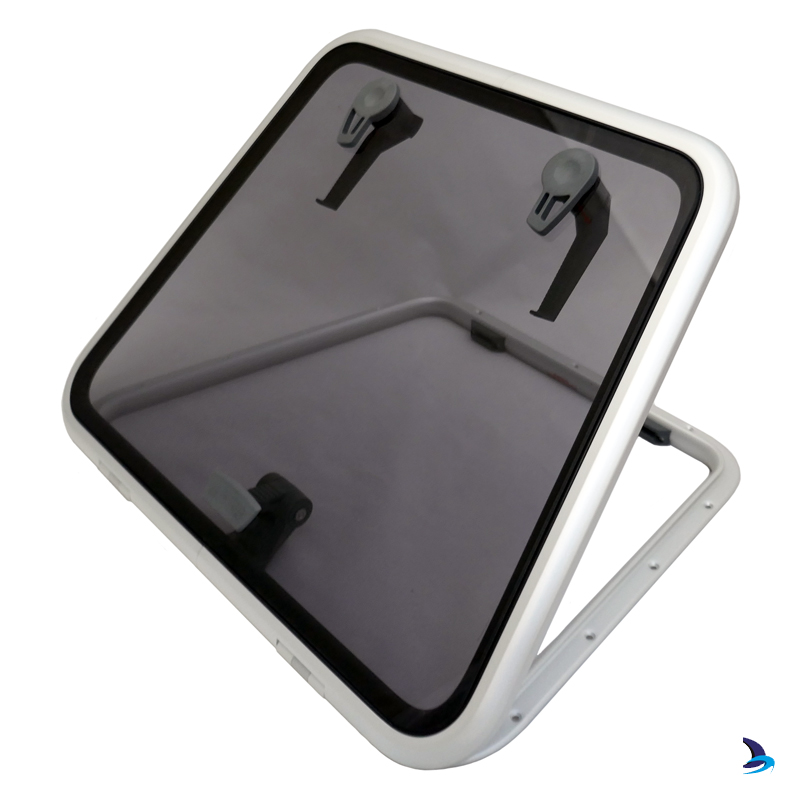

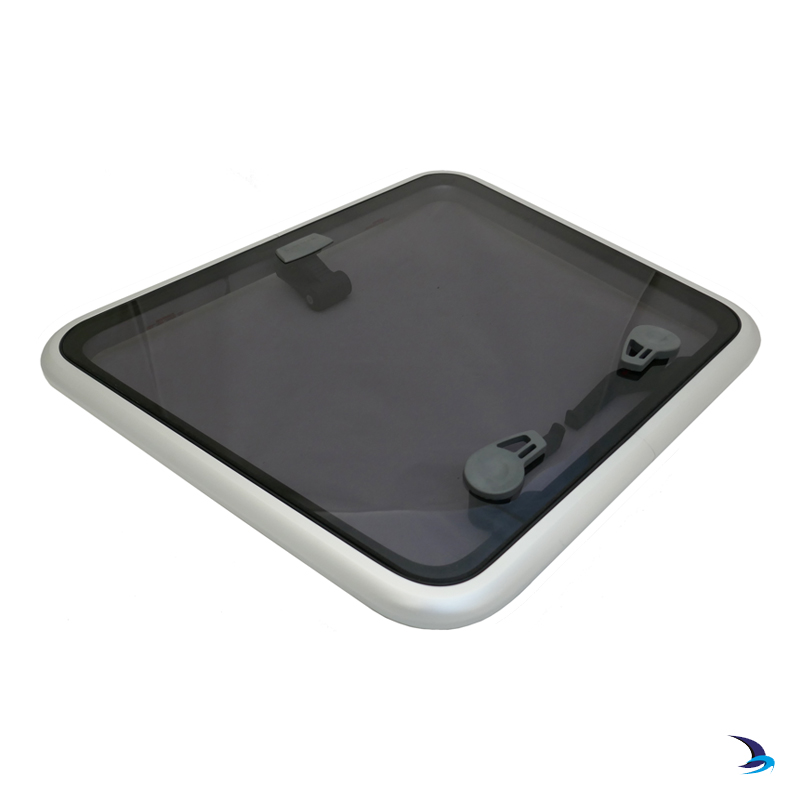

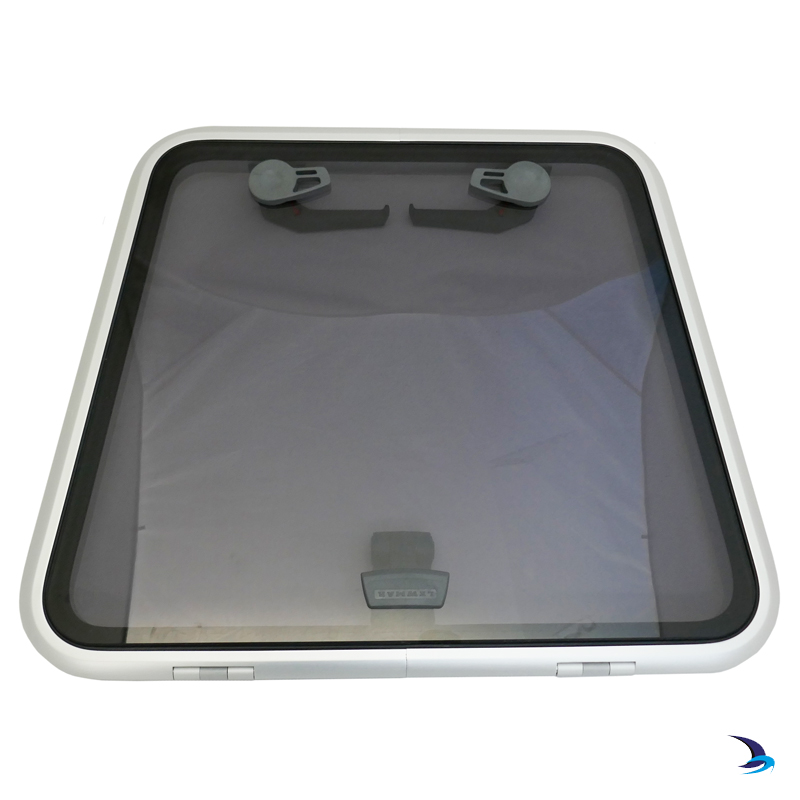

Lewmar - Low Profile Hatch Size 65 (Trapezoid)

Manufacturer #: 39965030

£609.99 (Inc. UK VAT @ 20%)RRP: ~~£763.43~~Save: £153.44 (20%)(£508.33 Exc. VAT)

You may also need:

ARBO - Arbokol 1000 Polysulphide Sealant

Details
Delivery
Customer reviews (0)

Sleekly designed Lewmar Low Profile Hatches are ideal for use on powerboats or small sailing craft. Smaller ventilation hatches are suitable for any deck location on sailing boats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts. Lewmar hatches feature their unique sealing system allowing easy acrylic replacement. All sizes certified for CE Category A, Areas 2, 3 & 4.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar Low Profile Hatch Features

Outside handles allow the hatch to be opened from on deck if it is not locked
Opens up to 180° (round hatches open up to 170°)
Friction levers (sizes 30+) hold the lid open in an position up to 95°
Anodised aluminium frame for corrosion resistance
Curved upper profile shape for strength as well as modern styling
All hatches have a 'Lower Frame Flange' of 15mm
Features Lewmar's unique sealing system allowing for easy acrylic replacement
Full range of spare parts available

Further information

Hatches should be fitted to a flat surface with a maximum tolerance of ± 1mm
Fastening size for lower frame sections use 5mm CSK screws No. 10 UNC 2BA
Fastening size at the hinge section use M6 (¼") screws

Low Profile Hatch Specifications

Lower Frame Flange

Size	Style	Overall Size				Cut-Out Size
Size	Style	Width (Y)	Height (X)	Depth (Z)	Radius (R)	Width (Y1)	Height (X1)	Radius (R1)	Weight	Acrylic Thickness
00	Square	281mm	281mm	25mm	72.5mm	211mm	211mm	42.5mm	1.6kg	8mm
03	Rectangular	301mm	246mm	25mm	72.5mm	231mm	176mm	42.5mm	1.6kg	8mm
10	Square	330mm	330mm	25mm	72.5mm	260mm	260mm	42.5mm	2.2kg	8mm
20	Rectangular	417mm	272mm	25mm	72.5mm	347mm	202mm	42.5mm	2.3kg	8mm
30	Rectangular	527mm	397mm	25mm	72.5mm	457mm	327mm	42.5mm	4.2kg	8mm
40	Square	491mm	491mm	25mm	72.5mm	421mm	421mm	42.5mm	4.6kg	8mm
41	Rectangular	491mm	246mm	25mm	72.5mm	421mm	176mm	42.5mm	2.5kg	8mm
44	Square	512mm	512mm	25mm	72.5mm	442mm	442mm	42.5mm	4.8kg	8mm
50	Rectangular	577mm	447mm	25mm	72.5mm	507mm	377mm	42.5mm	4.8kg	8mm
54	Rectangular	577mm	467mm	25mm	72.5mm	507mm	392mm	42.5mm	4.9kg	8mm
60	Square	577mm	577mm	25mm	72.5mm	507mm	507mm	42.5mm	6.4kg	10mm
65	Trapezoid			25mm	See above				6.5kg	10mm

* Cut-Out sizes may change when Trim Kits are used.

Lewmar Hatch & Portlight Fitting Guide (PDF)
