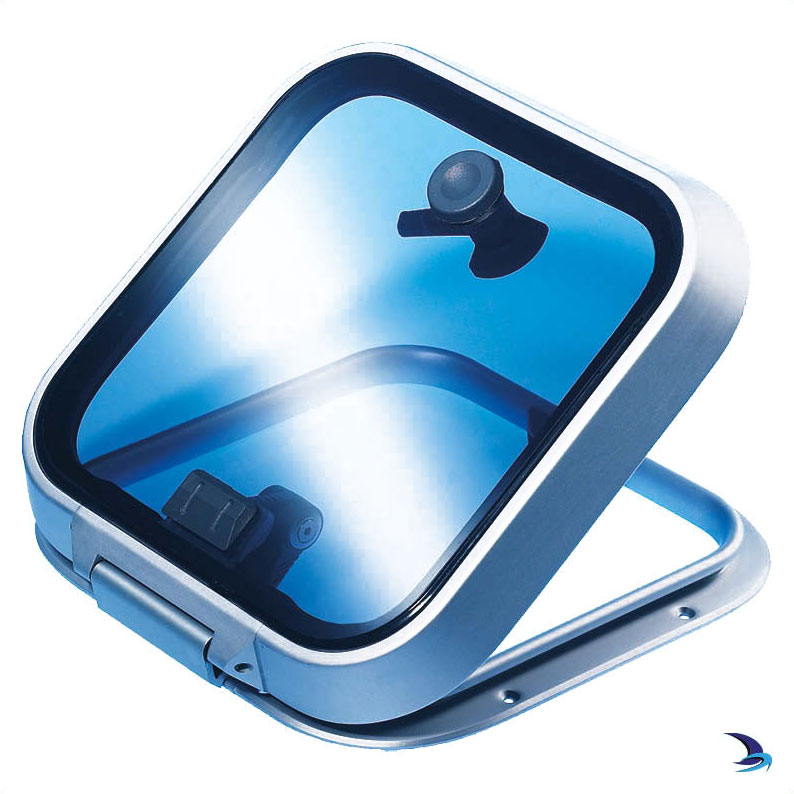

Lewmar - Ocean Hatch Lids

Ocean Hatch:
Acrylic colour:

Manufacturer #: 360219009

£449.99 (Inc. UK VAT @ 20%)RRP: ~~£458.22~~Save: £8.23 (2%)(£374.99 Exc. VAT)

Details
Delivery
Customer reviews (0)

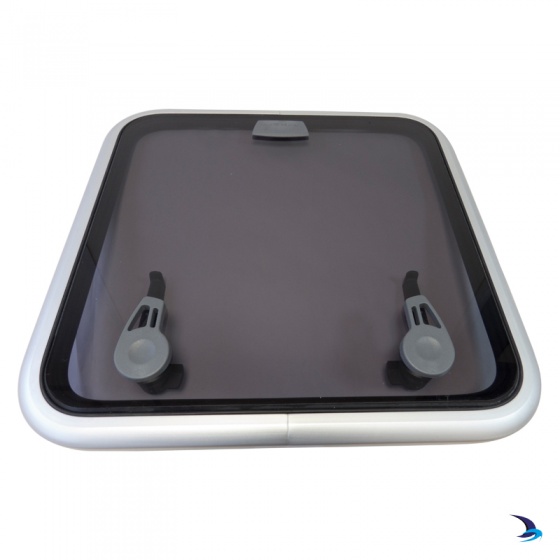

When a Lewmar Ocean hatch needs replacing, hatch lids are available for all sizes to save the need to remove the existing frame from the deck

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Lewmar Ocean Hatch Specifications

Size	Style	Overall size				Cut-out size
Size	Style	Width (Y)	Height (X)	Depth (Z)	Radius (R)	Width (Y1)	Height (X1)	Radius (R1)
10	Square (no flange)	324mm	324mm	39.5mm	75mm	255mm	255mm	40mm
10	Square (with 25mm flange)	324mm	324mm	39.5mm	75mm	260mm	260mm	42.5mm
20	Rectangular (no flange)	411mm	266mm	39.5mm	75mm	342mm	197mm	40mm
20	Rectangular (with 25mm flange)	411mm	266mm	39.5mm	75mm	347mm	202mm	42.5mm
30	Square (no flange)	521mm	391mm	39.5mm	75mm	452mm	322mm	40mm
30	Square (with 25mm flange)	521mm	391mm	39.5mm	75mm	457mm	327mm	42.5mm
40	Square (no flange)	485mm	485mm	39.5mm	75mm	416mm	416mm	40mm
40	Square (with 25mm flange)	485mm	485mm	39.5mm	75mm	421mm	421mm	42.5mm
44	Square (no flange)	509mm	509mm	43mm	76mm	437mm	437mm	40mm
44	Square (with 25mm flange)	509mm	509mm	43mm	76mm	442mm	442mm	42.5mm
50	Rectangular (no flange)	574mm	444mm	43mm	76mm	502mm	372mm	40mm
50	Rectangular (with 25mm flange)	574mm	444mm	43mm	76mm	507mm	377mm	42.5mm
60	Square (no flange)	574mm	574mm	43mm	76mm	502mm	502mm	40mm
60	Square (with 25mm flange)	574mm	574mm	43mm	76mm	507mm	507mm	42.5mm
70	Square (no flange)	694mm	694mm	43mm	76mm	622mm	622mm	40mm
70	Square (with 25mm flange)	694mm	694mm	43mm	76mm	627mm	627mm	42.5mm

Hatches should be fitted to a flat surface with a maximum tolerance of ± 1mm
Fastening size for lower frame sections use 5mm CSK screws No. 10 UNC 2BA
Fastening size at the hinge section use M6 (¼") screws
