Lewmar - Ocean Self-Tailing Winch Spares (Size 58ST)

Lewmar - Ocean Self-Tailing Winch Spares (Size 58ST)

Lewmar
  (2 Reviews)



Manufacturer #:  48000017

£38.99    (Inc. UK VAT @ 20%)(£32.49 Exc. VAT)

As with any precision engineered assembly, Lewmar winches need regular maintenance to operate at peak efficiency. Without this attention, permanent damage and premature wear can result.

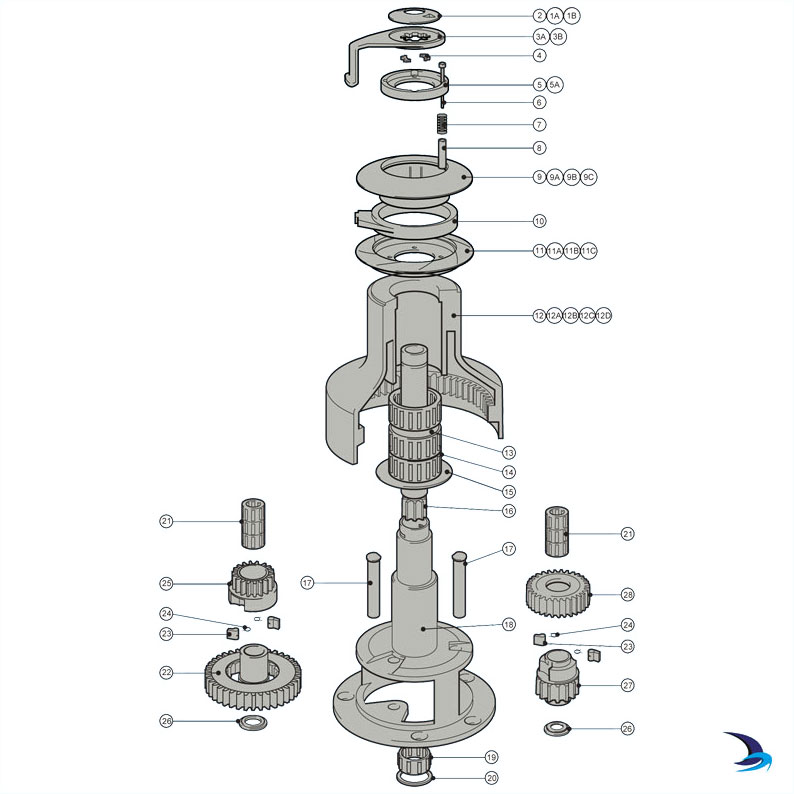

Lewmar winches are simple to dismantle and are designed for easy maintenance. The exploded view drawing shows how the component parts can be removed easily from each winch.

Please note that these spares are for Ocean winches from 1992 onwards. If your winch is an older model then please call us on +44(0) 1243 375774 and we will try to help you identify your winch.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
Spares 48 ST.
09 September 2016  |

Perfect

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Rating:
Excellent service from SeaTeach
19 May 2016  |

This is not review of the winch spare but of the chandler. The web-site is comprehensive, easy to use and helpful, the staff knowledgable and friendly, happy to make an extra effort when things don't go to plan.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

Winch Service Notes

For satisfactory long term performance and product life these winches must be given the routine and full maintenance procedure described below.

  • Monthly – All Lewmar winches should be hosed down with fresh water then lightly oiled and greased.
  • Two or three times during active sailing season – All Lewmar winches should be stripped, cleaned and lubricated.
  • At the end of each sailing season or before starting the new season – All Lewmar winches should be completely stripped, cleaned, thoroughly checked for damage, lubricated and reassembled as detailed in the service manual.

Size 58ST spares kit includes the following -

  • 2 x 16-77ST Ocean collet
  • 4 x Standard pawl (large)
  • 4 x Standard pawl spring (small)
  • 1 x 50/54 Washer
  • 1 x Flanged washer
  • 1 x O-ring 49.6 ID x 2.4 section
  • 1 x UR1685 Circlip Spirolox-Plain
  • 1 x O-ring, 48 x 1.5 Nitrile 70


Item Description Part Number No in Winch
1a Chrome top cap 58AST/58CST/58CCST 45000700 1
1b Bronze top cap 58BST/58BBST 45000701 1
2 'O' ring (fitted in item 1a/1b) B6061 1
3a Chrome feeder arm 58AST/58CST/58CCST 45000703 1
3b Bronze feeder arm 58BST/58BBST 45000704 1
4 Collet 45000102 2
5 Spring retainer (black) 45000795 1
5a Spring retainer (grey) 45000725 1
6 M6x55 socket head cap screw B0756 4
7 Spring 45000512 4
8 Spacer 45000713 4
9 Upper crown assembly (black) 45000785 1
9a Upper crown (grey) 58AST/58BST/58CST 45000705 1
9b Bronze upper crown assembly 58BBST 48058000 1
9c Chrome upper crown assembly 58CCST 48058001 1
10 Stripper ring (grey) 45000708 1
11 Lower crown (black) 45000789 1
11a Lower crown (grey) 58AST/58BST/58CST 45000709 1
11b Bronze lower crown assembly 58BBST 48058005 1
11c Chrome lower crown assembly 58CCST 48058006 1
12 Drum alloy (black) 45000784 1
12a Drum alloy 58AST 45000714 1
12b Drum bronze 58BST/58BBST 45000716 1
12c Drum chrome 58CST/58CCST 45000715 1
12d Drum stainless steel 58SST 45000770 1
13 Spacer 15065115 1
14 Roller bearing assembly 15044121 3
15 Drum washer 45000534 1
16 Main spindle 45000718 1
17 Gear spindle 45000624 2
18 Centre stem 45000717 1
19 Roller bearing assembly (fitted in item 18) 15000019 1
20 Circlip (fitted in item 18) B2092 1
21 Roller bearing assembly 15000017 6
22 Ratchet gear 45000720 1
23 Pawl 1264/8 4
24 Pawl spring 1260/7 4
25 Pawl gear 45000719 1
26 Flanged washer 15000646 2
27 Pawl gear 45000721 1
28 Ratchet gear 45000722 1

NOTE:

To convert to an all bronze or all chrome winch the following parts are required -

9b + 11b = 48058022

9c + 11c = 48058023

9b/9c/11b/11c are all assembled components NOT available separated.
