Lewmar - Stainless Portlights (Opening)

Lewmar - Stainless Portlights (Opening)

Lewmar




Manufacturer #:  393020262

£229.99    (Inc. UK VAT @ 20%)RRP:  £282.15Save:  £52.16 (18%)(£191.66 Exc. VAT)

With its highly polished outer frame, the Stainless portlight will really shine on your boat. The handles and hinge system were designed to leave the lens clear of obstructions, giving it an uncluttered view and a clean, modern look.

Stainless steel opening portlights are CE Approved for Sailing boats Category A, Areas 2, 3, & 4, and Power boats Category B, Areas 1, 2, 3 & 4.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar Stainless Steel Portlight Features

  • ABS plastic trim (chrome trim on size 8)
  • Can be installed with sealant or closed cell PVC tape
  • Trim with clean styling
  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
  • Full range of spares available


Lewmar Stainless Steel Portlight Specifications

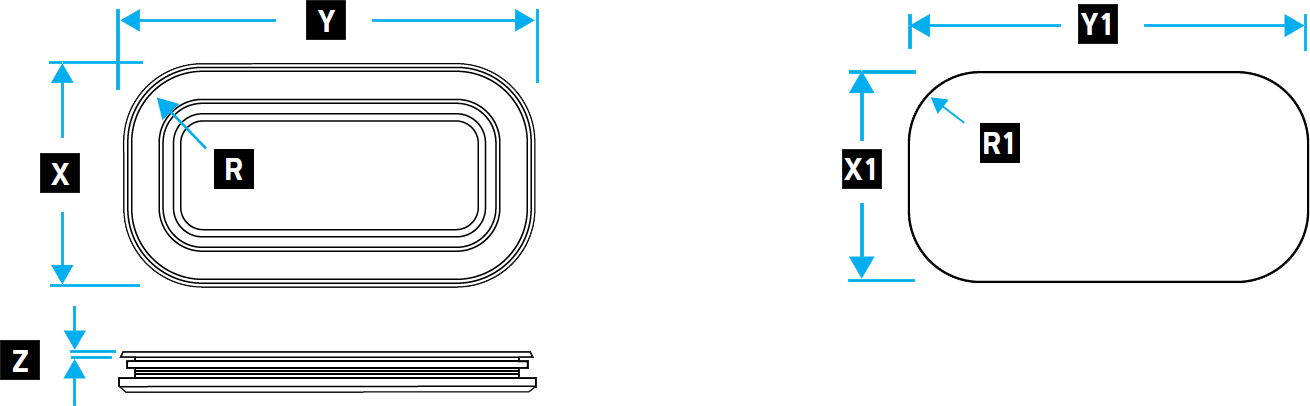

Lewmar stainless portlight dimensions

Size Overall Size Cut-Out Size
Width
(X)
Height
(Y)
Depth
(Z)
Radius
(R)
Width
(X 1)
Height
(Y 1)
Radius
(R 1)
0 176mm 323mm 4mm 62mm 156mm 303mm 52mm
1 191mm 367mm 4mm 62mm 171mm 347mm 52mm
1 RE 191mm 367mm 4mm 95.5mm 171mm 347mm 85.5mm
7 RE 191mm 425mm 4mm 95.5mm 171mm 405mm 85.5mm
8 196mm 452mm 4mm n/a n/a n/a n/a

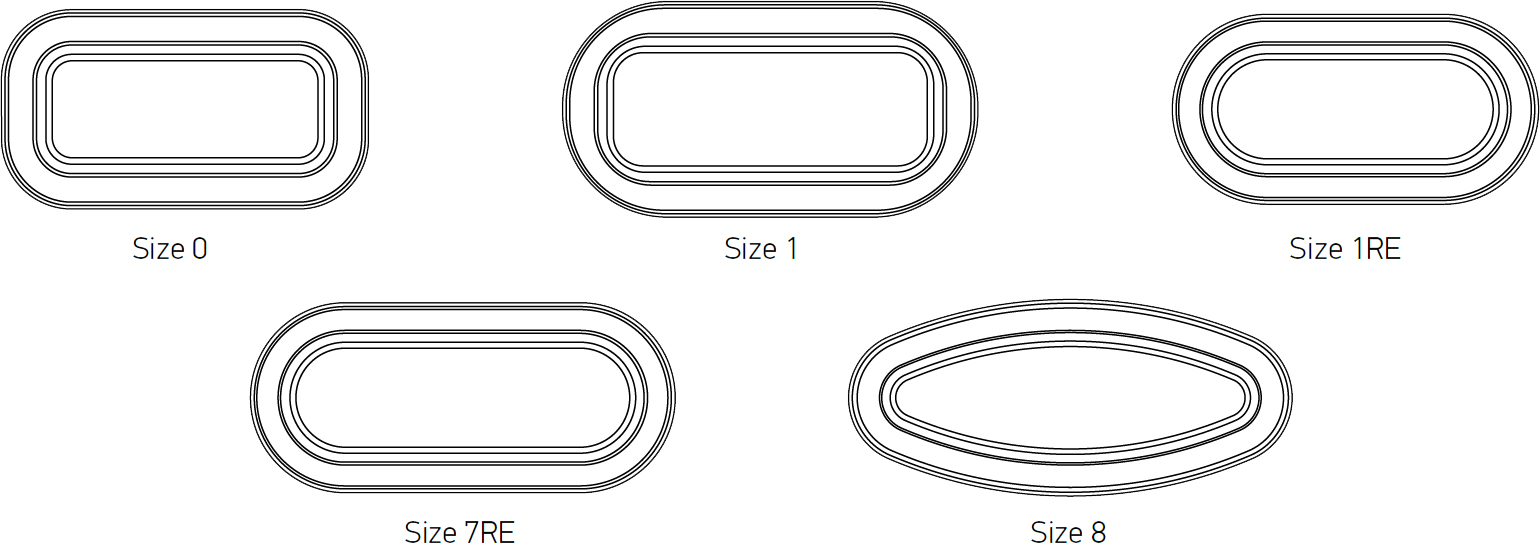

Lewmar Stainless Steel Portlight Size Range
