Lewmar - V1 Vertical Windlass Kits (FastFit™)

Chain Size:

Manufacturer #: 6671011196-138

£1,519.99 (Inc. UK VAT @ 20%)RRP: ~~£1,909.74~~Save: £389.75 (20%)(£1,266.66 Exc. VAT)

You may also need:

	Lewmar - Wired Windlass Remote + £106.99

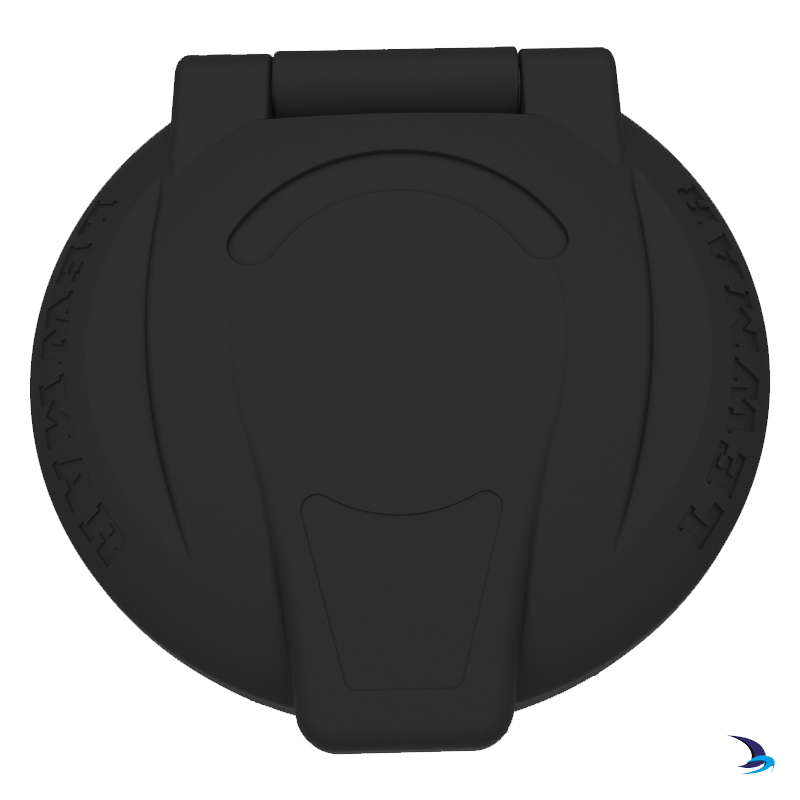

	Lewmar - CHSX Foot Switch Black Closed Lid + £65.99

Details
Delivery
Customer reviews (0)

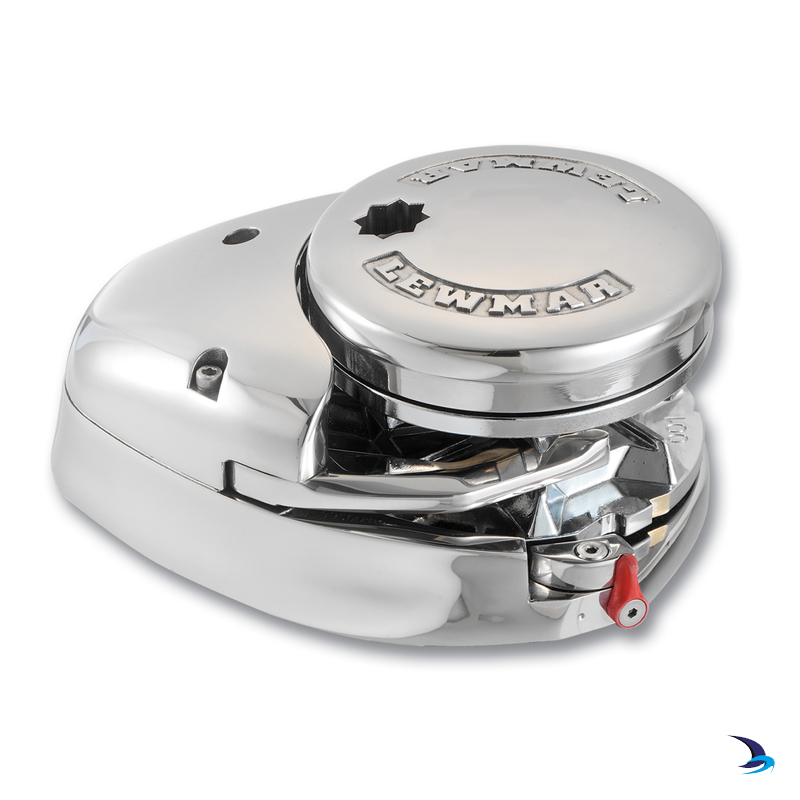

Easy anchoring starts with a Lewmar windlass. The Lewmar V1 vertical windlass is suitable for boats approximately 28-38ft with average displacement. Displacement, windage and anchor weight must be taken into account when selecting a windlass. If your boat is of heavy displacement, consider a larger windlass model.

This kit contains everything you need to need to set up your new windlass - deck unit, motor gearbox, gypsy, contactor, circuit breaker & rocker switch. You may wish to add deck foot switches or a remote control in addition.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Rope-chain gypsy
Manual chain release (Free Fall)
Cone clutch for smooth, easy control
Optional manual override motor gearbox
W.A.R.P Drum
Fall safe anchor lock
Robust/reliable worm gearbox
FastFit equipped for quicker installation and less hassle
Emergency recovery kit available

Lewmar FastFit™ Feature

The FastFit™ motor gearbox attachment enables the windlass to be fitted by one person alone.

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motor gearbox for a perfect fit first time. The motor gearbox can be fitted and rotated in increments of 45°.

To install your windlass, simply fix the deck unit to the deck, slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut. Simple!

Lewmar V Series Specifications

Model	Motor power	Max pull	Working load	Max line speed	Normal current draw	Circuit breaker	Weight
							Gypsy only	Gypsy/drum
V1-12V	700W	454kg	113kg	19 m/min	80A	90A	19kg	-
V2-12V	700W	650Kg	163kg	21 m/min	80A	90A	19kg	22kg
V2-24V	900W	760kg	180kg	24 m/min	45A	50A	19kg	22Kg
V3-12V	1000W	890kg	215kg	28 m/min	85A	110A	21.5kg	24.5kg
V3-24V	1000W	1020kg	243kg	30 m/min	60A	90A	21.5kg	24.5kg

Lewmar V Series Gypsy Specifications

Gypsy Number	Chain Description	Rope Description
006	6mm ISO 4565, 1/4" G40, 1/4" BBB	12-14mm (1/2") 3-strand and 8-plait
000	7mm ISO 4565, 1/4" G40, 1/4" BBB	12-14mm (1/2) 3-strand and 8-plait
001	8mm DIN 766, 8mm ISO 4565, 5/16" G40	12-16mm (1/2"-5/8") 3-strand and 8-plait (5/8" only)
002	10mm DIN 766, Campbell 3/8" S4	12-16mm (1/2"-5/8") 3-strand and 8-plait (5/8" only)
003	10mm iSO, Campbell 3/8" S3, Lewmar 9.5mm G40	16mm (5/8") 3-strand and 8-plait
