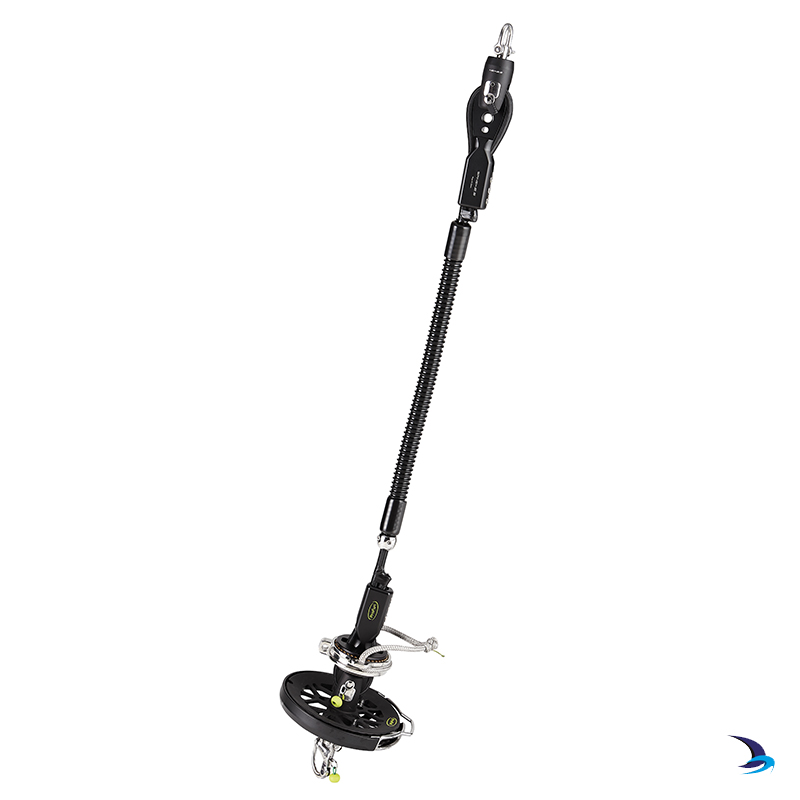

Profurl - SPINEX V2 Top Down Furler
Profurl - SPINEX V2 Top Down FurlerProfurl - SPINEX V2 Top Down FurlerProfurl - SPINEX V2 Top Down FurlerProfurl - SPINEX V2 Top Down FurlerProfurl - SPINEX V2 Top Down Furler

Profurl - SPINEX V2 Top Down Furler

Profurl



Manufacturer #:  SPINEX0.9V2

£1,799.99    (Inc. UK VAT @ 20%)RRP:  £1,995.00Save:  £195.01 (10%)(£1,499.99 Exc. VAT)

First launched a decade ago, the next generation of SPINEX includes new innovations to provide even greater user comfort and enhanced furling performance.

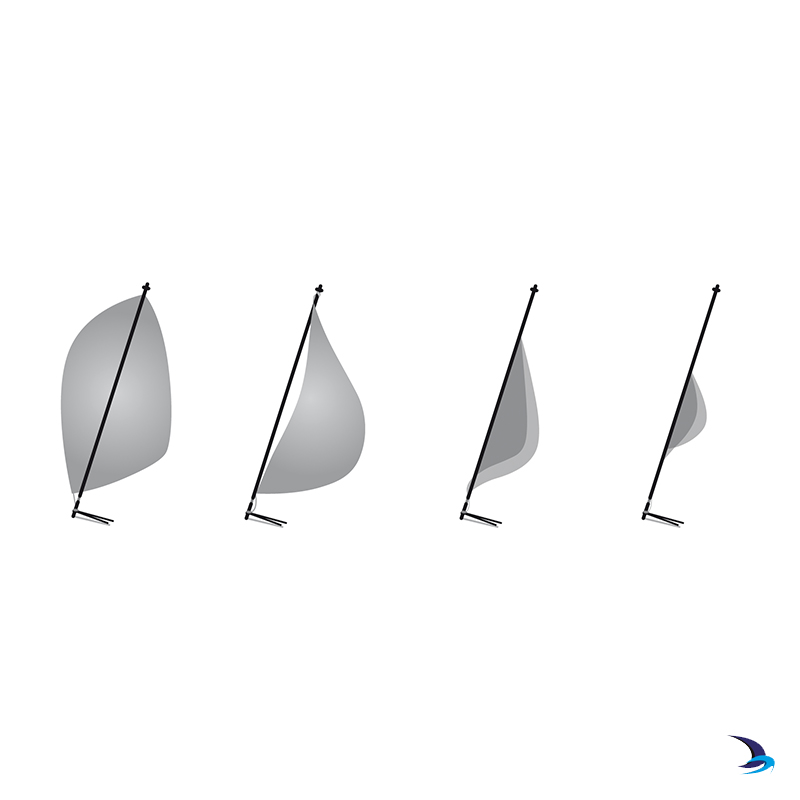

When it comes to asymmetric spinnakers, top down furling is the best solution for bringing in your sail. The concept first appeared on maxi yachts before filtering down to more modestly-sized sailing boats. Thanks to its swivel tack, the sail can be furled from the top downward to progressively stifle the sail without creating a jam.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

SPINEX V2 Features:

  • 6 models available: SPINEX 0.9, SPINEX 1.5, SPINEX 2.5, SPINEX 4.0, SPINEX 6.5 and SPINEX 8.0
  • For boats from 5 to 18m long, and asymmetrical spinnakers up to 400 m²
  • All-in-one system: mechanisms, anti-torque cable, fittings, flexible PVC sleeves, 2-in-1 thimbles, and a swivel tack point
  • The SPIN KIT is available separately for use on NEX reefing systems and other brands on the market (Facnor, etc.)
  • Integrated Profurl technology
  • International 3-year guarantee

Why SPINEX?

Using asymmetric spinnakers in some conditions can be dangerous. With the Spinex, you're going to rediscover the joys of this type of sailing because it allows you to:

  • Easily handle this type of sail (even short-handed)
  • Remain in the safety of the cockpit
  • Improve the performance of your sailing-boat by using downwind sails

Adaptable: One system for many uses

The Spinex can easily be converted into a NEX by removing the swivel tack from the drum and the end fittings, and then it can be used for sails like a gennaker or a code zero.

Innovations in the next generation of SPINEX solutions

Greater furling comfort and performance

Easy to use, offering improved performance for your sailing boat:

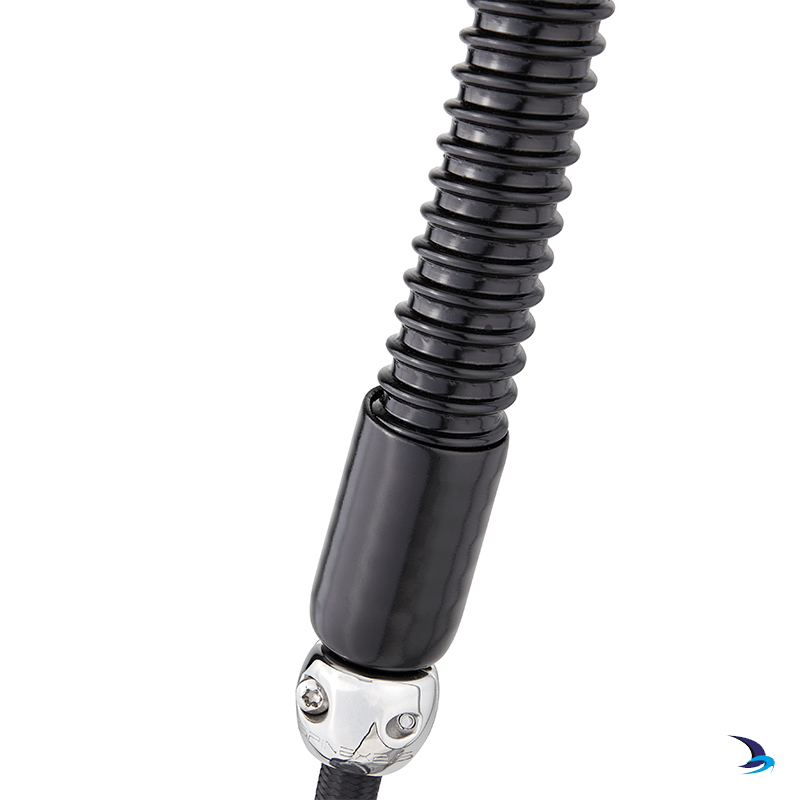

  • Replacement of the traditional balls with a flexible PVC sheath, offering full UV and twist resistance
  • Up to 50% reduced weight
  • Easy to store once the sail is furled

Improved furling performance:

  • One specific anti-torque cable diameter per model
  • Improved furling, adapted to the size of the sails

Easy to install:

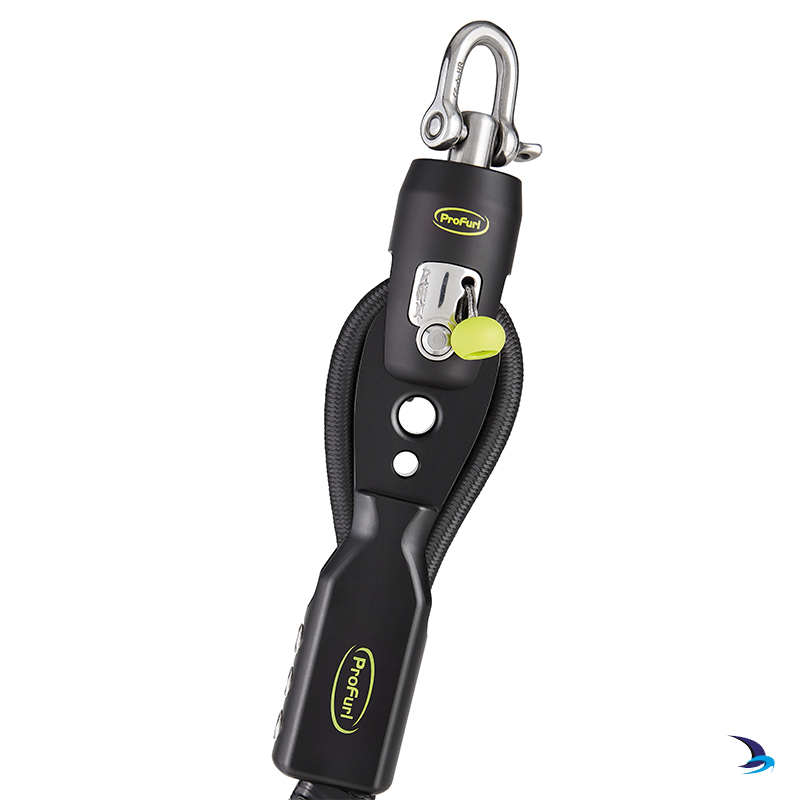

  • A new, innovative 2-in-1 thimble: thimble + clamp for faster installation


Choosing your Profurl SPINEX Top Down Furler

  SPINEX 0.9 V2 SPINEX 1.5 V2 SPINEX 2.5 V2 SPINEX 4.0 V2 SPINEX 6.5 V2 SPINEX 8.0 V2
Boat length
(not contractual)
up to 8m up to 10m up to 12m up to 15m up to 18m 20m +
Sail area recommendation up to 60m2 up to 100m2 up to 150m2 up to 230m2 up to 300m2 up to 400m2
Maximum working load 900kg 1500kg 2500kg 5000kg 6500kg 8000kg
Spool diameter 120mm 150mm 180mm 220mm 220mm 250mm
Lower end fitting Clevis pin snap shackle Trigger snap shackle -
Upper end fitting D shackle -
Anti-twist cable Ø 9mm 11mm 13mm 15mm 17mm 19mm
Cable length delivered as standard 14m 17m 20m 25m 30m 35m

The working loads shown are the maximum working loads of the mechanisms (spool and swivel) only and are not the loads of the complete system when terminals are included. The product should not be used above these working loads in any circumstances.

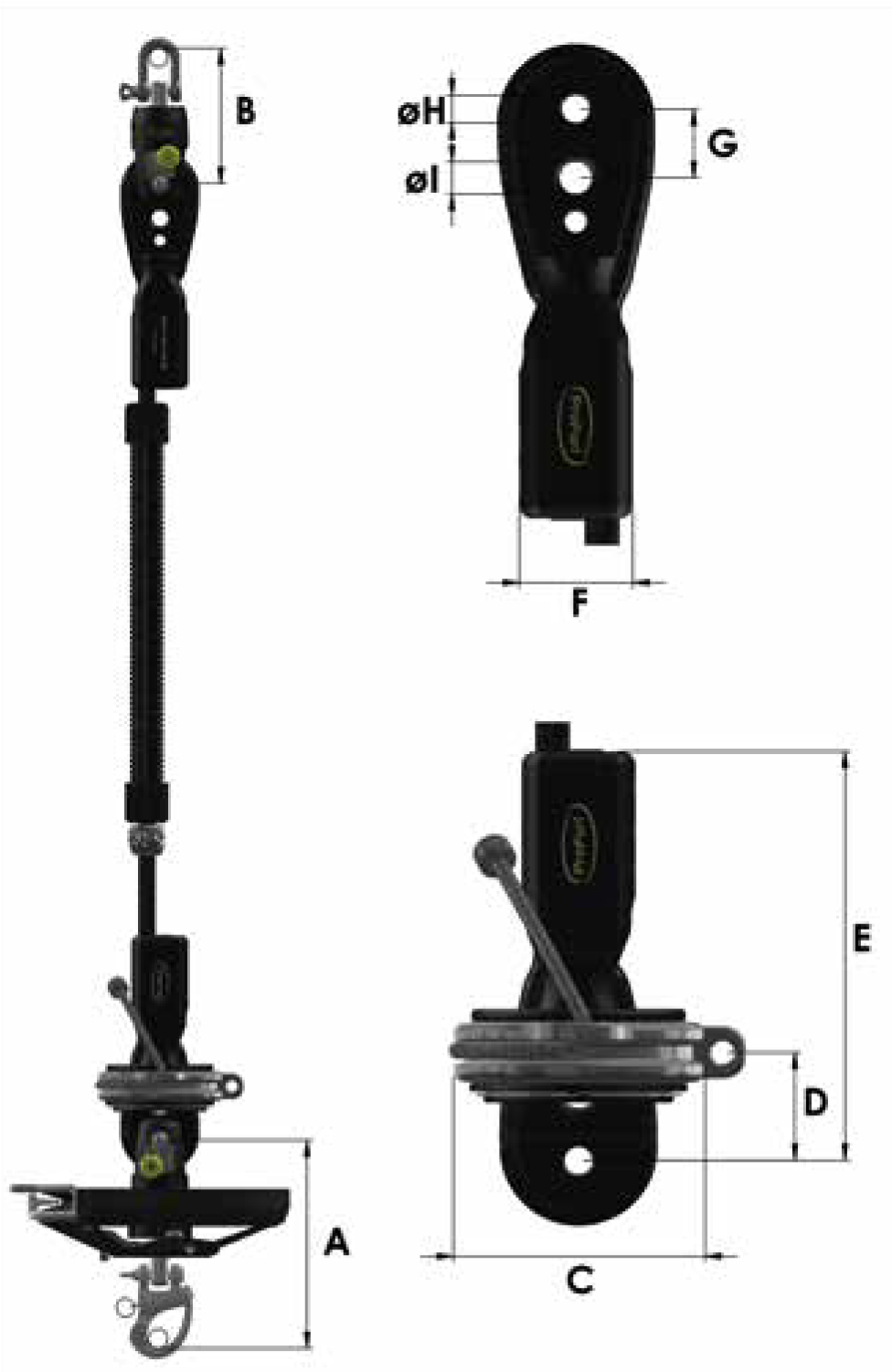

Profurl SPINEX V2 Specifications

  SPINEX 0.9 V2 SPINEX 1.5 V2 SPINEX 2.5 V2 SPINEX 4.0 V2 SPINEX 6.5 V2 SPINEX 8.0 V2
A (mm) 113.8 120.70 154 180.7 225.4 -
B (mm) 63.3 80.2 100.3 122.7 146.1 160
C (mm) 80 87 93 103 126 126
D (mm) 31.5 35 40 47.1 55.4 56.4
E (mm) 127.5 139.5 151.5 163 209 216
F (mm) 34 37 42 47 53 60
G (mm) 19 21 25.5 28.5 33 33
H (mm) 8.3 8.3 10.3 12.3 14.3 14.3
I (mm) 10 10 12 14 17 18
Ø spool (mm) 120 150 180 220 220 250
Ø furling line (mm) 8 8 8-10 8-10 10 10
Ø anti-torque cable (mm) 9 11 13 15 17 19
Weight: tack swivel point, lower thimble (kg) 0.49 0.62 0.83 1.06 1.87 1.88
Weight: upper thimble (kg) 0.12 0.17 0.245 0.31 0.58 0.59
Weight: cable & sleeve per metre (kg) 0.16 0.21 0.275 0.345 0.42 0.5
