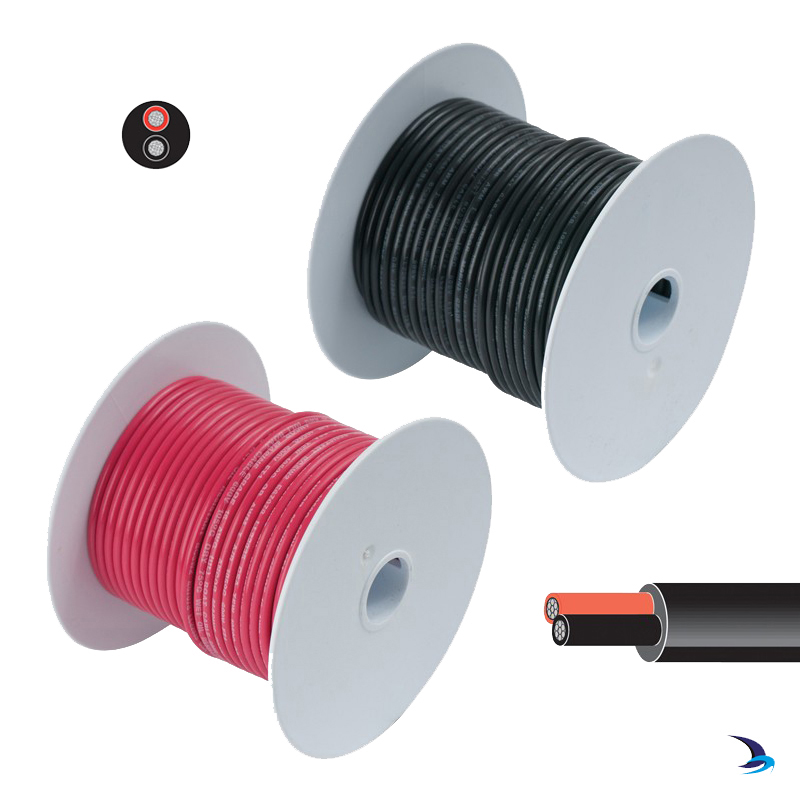

Tinned Cable Two Core Round 2.5mm2 100m Reel

£269.99 (Inc. UK VAT @ 20%)(£224.99 Exc. VAT)

Details
Delivery
Customer reviews (0)

Low voltage, high performance wiring cable.

Manufactured to ISO 6722-1:2011 (Class B)

Tinned copper conductors PVC sheathed 70°C

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Tinned Cable Features

Tinned copper conductors provide excellent resistance to corrosion
Good resistance to petrol, diesel, lubricating oils, diluted acid and moisture
Hard grade PVC insulation offers good resistance to abrasion and cut though
Suitable for use at temperatures -40ºC to +105ºC with excursions up to 120ºC
Suitable for 12V and 24V systems (maximum 60V)
Manufactured in accordance with ISO 6722-1:2011 (Class B)
Cables are printed with the specification on the insulation

Tinned Cable Two Core Specifications

Conductor Cross Section	Conductor Specification	Current Rating	Overall Cable Diameter
1.5 mm²	2 x 21/0.30 mm	21.0 amps	6.4 mm
2.5 mm²	2 x 35/0.30 mm	29.0 amps	6.7 mm
