TruDesign - Straight Hose Tail Male 38mm 1 1/2" BSP

Manufacturer #: 90231

£4.39 (Inc. UK VAT @ 20%)(£3.66 Exc. VAT)

Details
Delivery
Customer reviews (0)

TruDesign Tails are moulded from a glass-reinforced nylon composite. High strength, high-modulus glass fibres within the nylon composite provides dramatic strength, stiffness, toughness, and dimensional stability. TruDesign Tails eliminate the corrosion and electrical bonding problems associated with metallic fittings. Tail fittings are designed for twin hose clamps and to never crush.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Tru-Design Hose Tail Features

Manufactured from a glass-reinforced nylon composite - High strength and light weight
Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
Chemical resistant - Unaffected by diesel, petrol, or chemicals
UV resistant - Will not degrade or discolour with ultraviolet light from the sun
High quality surface finish - Will not discolour with green film as similar bronze fittings do
BSP (parallel) treads - Universal compatibility to TruDesign Ball Valves, threaded fittings, and other marine components
Large operating temperature range - Suitable for all marine environments, from -20°C to +100°C

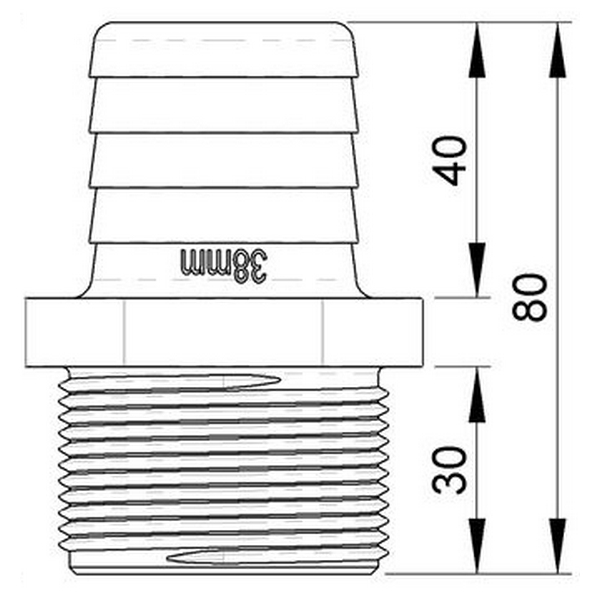

TruDesign Straight Male Hose Tail Specifications

A	B	C	D	E	F	G
Thread size	Tail size	Overall length	Thread length	Tail length	Hex size AF	Minimum internal Ø
1/2"	13mm	63mm	24mm	31mm	25mm	9mm
3/4"	19mm	63mm	24mm	31mm	30mm	13mm
1"	25mm	80mm	30mm	40mm	35mm	19mm
1 1/4"	32mm	80mm	30mm	40mm	44mm	24mm
1 1/2"	38mm	80mm	30mm	40mm	50mm	29mm
2"	50mm	93mm	30mm	50mm	62mm	40mm
3"	75mm	137mm	42mm	80mm	89mm	66mm
1/2"	16mm	62mm	24mm	30mm	25mm	11mm
3/4"	22mm	63mm	24mm	31mm	30mm	15mm
1"	28mm	80mm	30mm	40mm	35mm	20mm
1 1/4"	38mm	92mm	30mm	50mm	62mm	29mm
1 1/2"	32mm	80mm	30mm	40mm	50mm	24mm
2"	38mm	80mm	30mm	40mm	50mm	24mm
3"	64mm	137mm	42mm	80mm	90mm	55mm

Frequently Asked Questions

Fitting sanitary hose to hose tails
Use a hair drier to heat up the end of the hose or immerse the end of the hose in hot water. Both these methods will soften the hose sufficiently to enable it to be pushed on. Care must be taken with the heat of the hair drier and any solvents that could ignite. Remember to always use 2 stainless steel hose clamps on all hoses that are in an under water or close to an under water position.
Identification of threads BSP or NPS?
Tru-Design manufacture these marine fittings with two types of threads: BSP British Standard Pipe for the European market. NPS National pipe straight for the US market. Each threaded fitting will have either a B for BSP or N for NPS. If no marking is visible, it will be BSP.
